45mm DIN Rail Electronic Module Housing Enclosure with 32 Connections (Green, Lock Type PCB Mount, IP20, with Vent)

Applications
The 45mm DIN Rail Electronic Module Housing Enclosure with 32 Connections is ideal for use in:
Industrial control panels
Signal conditioning and isolation modules
PLC and automation systems
PCB-based electronic assemblies
Factory automation and process control
Electrical distribution and monitoring systems

Key Features & Specifications
Dimensions: 45.1mm (W) × 100.1mm (L) × 112.3mm (H)
PCB Compatibility: Supports 1mm–1.8mm thick PCB boards
Installation: Vertical (horizontal) DIN rail mounting with lock-type PCB installation for secure retention
Protection: IP20 ingress protection rating, suitable for indoor industrial environments
Ventilation: Integrated vents for effective heat management

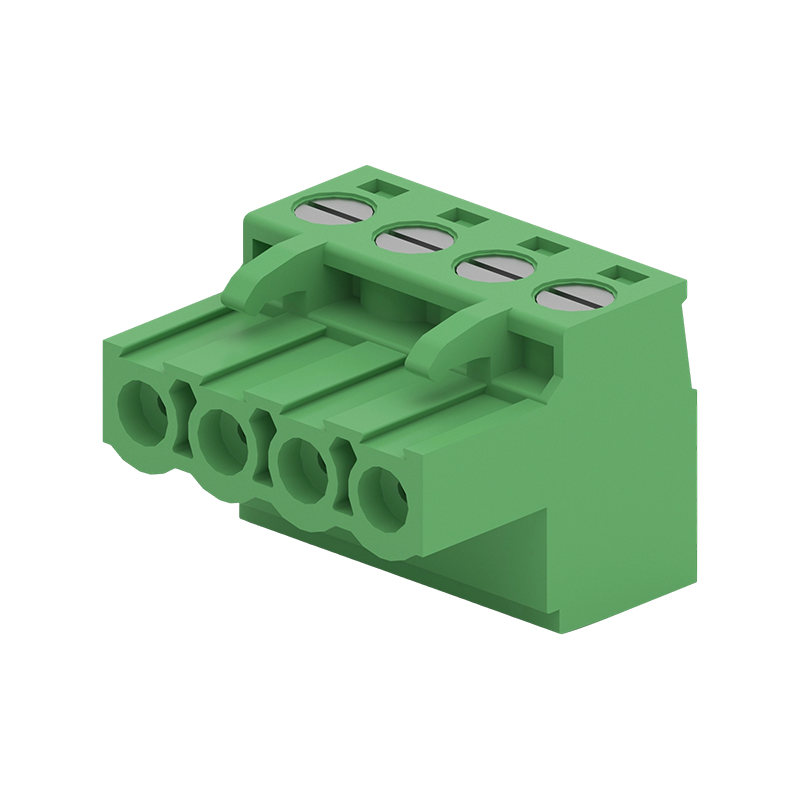

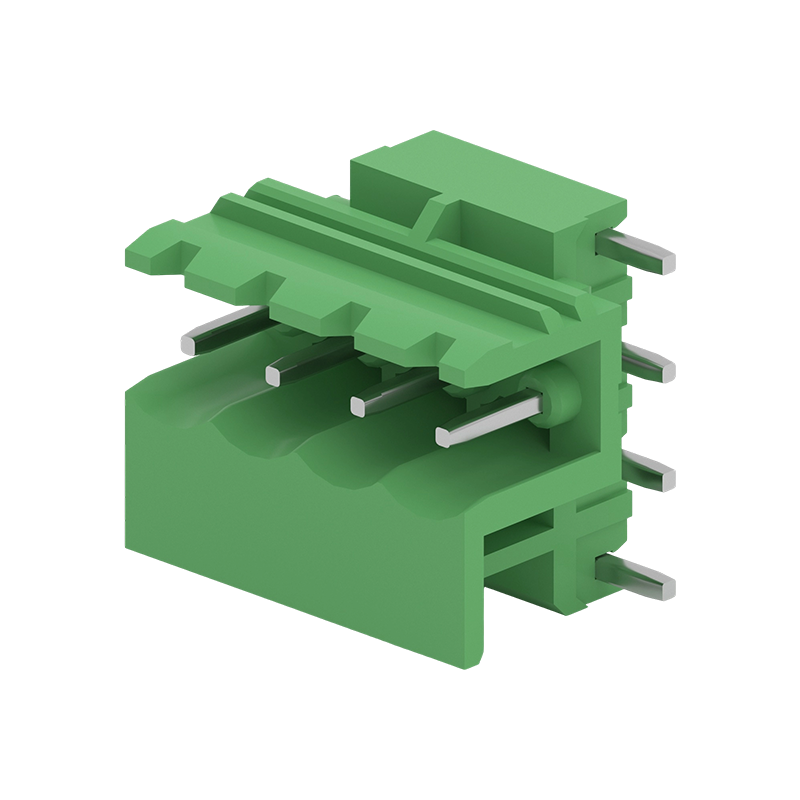

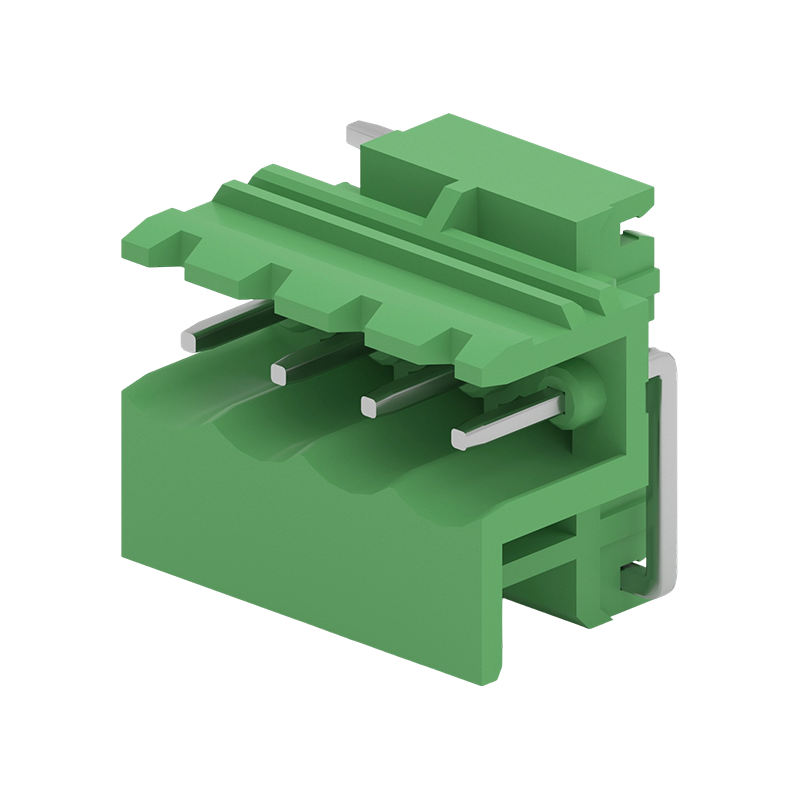

Connectivity: Maximum of 32 connections (5.0mm spacing) for flexible I/O integration
Material & Color: Green PA66 (polyamide 66) construction, UL94-V0 flame-retardant for enhanced safety
Temperature Range:
Assembly: -5°C to +85°C
Operation: -40°C to +85°C
Storage/Transport: -40°C to +85°C

Why Choose SFME 4500?
1. Secure Installation: Lock-type PCB mounting ensures components stay firmly in place, even in high-vibration industrial environments.
2. Durable Construction: UL94-V0 flame-retardant PA66 material provides long-lasting protection against impact and fire hazards.
3. Thermal Efficiency: Built-in vents prevent overheating, extending the lifespan of sensitive electronic components.
4. High-Density Connectivity: 32 connection points with 5.0mm spacing support complex I/O configurations for diverse automation needs.
5. Compliance: Meets IP20 standards for dust and finger protection, ensuring safe operation in industrial settings.
6. Spacious Design: 45.1mm width accommodates larger PCB assemblies, making it suitable for high-capacity electronic modules.
