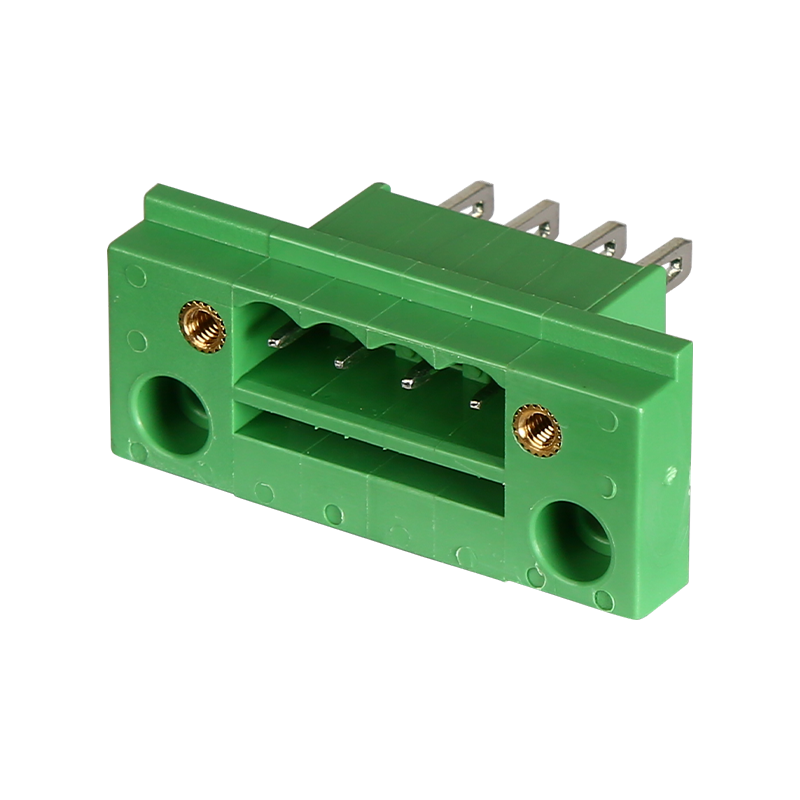

2ESAWB-5.08 Blade Terminals Blocks

Poles

Send an inquiry

If you cannot find what you need from the options above, please contact us for custom poles.

Description Product Details PDF Download

The 2ESAWB-5.08 is a pluggable blade terminal block with a 5.08mm pitch, engineered for secure, efficient PCB wire-to-board connections in industrial and commercial electronics. Its detachable plug design allows field wiring to remain intact while the PCB is removed — dramatically simplifying installation, maintenance, and system upgrades.
Featuring a PA66 UL94V-0 flame-retardant housing, copper alloy tin-plated contacts, and a stainless steel shrapnel (spring clip) for enhanced contact retention, the 2ESAWB-5.08 delivers consistent electrical performance and mechanical durability across a wide range of operating conditions.
Dual-certified to UL (300V / 15A) and IEC (320V / 12A) standards, this connector series is ready for export to North American, European, and global markets.

Applications
The 2ESAWB-5.08 is suited to a broad range of industries where reliable plug-in wiring solutions are essential:
Industrial automation & machine control panels
Power supply units and power distribution boards
Building automation: HVAC, lighting, access control
Frequency inverters and motor drives
Telecommunications and networking equipment
Medical instrumentation and diagnostic devices
Solar inverters and renewable energy systems
Railway and transportation electronics
Consumer and commercial appliance PCBs

Key Features：
Pluggable (detachable) blade design — quick disconnect without disturbing field wiring
5.08mm pitch — high current capacity in a space-efficient footprint
2P to 22P pole range — scalable for simple and complex circuit layouts
UL Rated: 300V / 15A | IEC Rated: 320V / 12A
Operating temperature: -40°C to +105°C
Stainless steel shrapnel (spring contact) — reliable contact force and vibration resistance
PA66 UL94V-0 housing — flame retardant, high mechanical strength
RoHS compliant — meets global environmental requirements
UL & CE certified

Frequently Asked Questions
Q: What makes the 2ESAWB-5.08 different from the 2CSAB-5.08?
A: The 2ESAWB-5.08 features an integrated stainless steel shrapnel (spring retention clip) that provides enhanced contact retention and is optimized for wire-entry panel-mount applications, while the 2CSAB-5.08 is a standard blade-type pluggable block for direct PCB mounting. Both share the same 5.08mm pitch and electrical ratings.
Q: Is the 2ESAWB-5.08 compatible with other 5.08mm pitch connectors?
A: The 2ESAWB-5.08 follows the standard 5.08mm pitch blade terminal block form factor. It is designed to be interchangeable with equivalent products from leading brands. Always verify mating part dimensions before substitution.
Q: What wire gauges are compatible with this terminal block?
A: Please contact our sales team or request the full technical datasheet for wire range (AWG/mm²), recommended stripping length, and torque values.
Q: Can I order custom colors or private-label products?
A: Yes. OEM customization — including housing color, laser marking, and custom packaging — is available for qualifying order volumes. Please inquire with our sales team.
Q: What is the RoHS compliance status?
A: The 2ESAWB-5.08 is fully RoHS compliant, free from restricted hazardous substances, and suitable for use in environmentally regulated markets including the EU, UK, and China.
